1.     Introduction

This document provides a complete step-by-step guide to configure OAuth 2.0 authentication in NetSuite and generate an Access Token using Postman.

OAuth 2.0 is a secure authorization framework that allows external applications to access NetSuite APIs without exposing user credentials.

2.     Prerequisites

Before starting, ensure the following:

• NetSuite account (Sandbox recommended)
  • Administrator or required permissions
  • Postman installed
  • Browser (Chrome recommended, popups enabled)
  • NetSuite Account ID

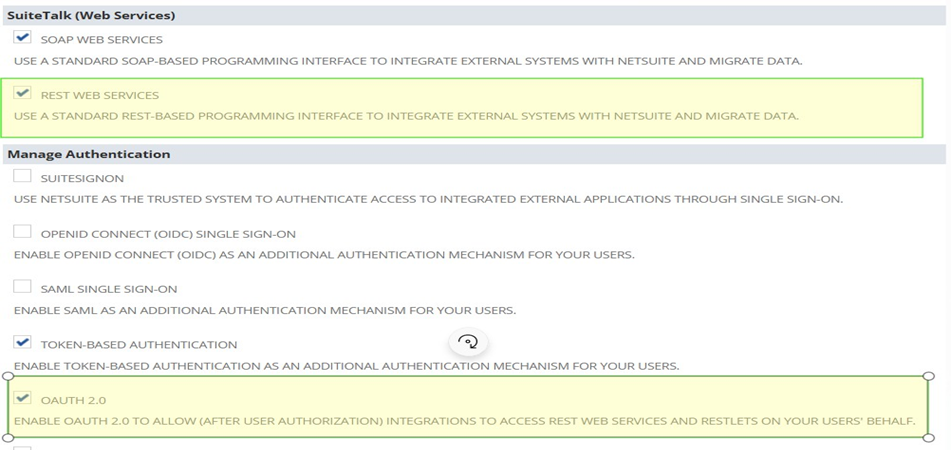

3.     Enable Features in NetSuite

Navigate to: Setup → Company → Enable Features → SuiteCloud

• REST Web Services
  • OAuth 2.0 Click Save

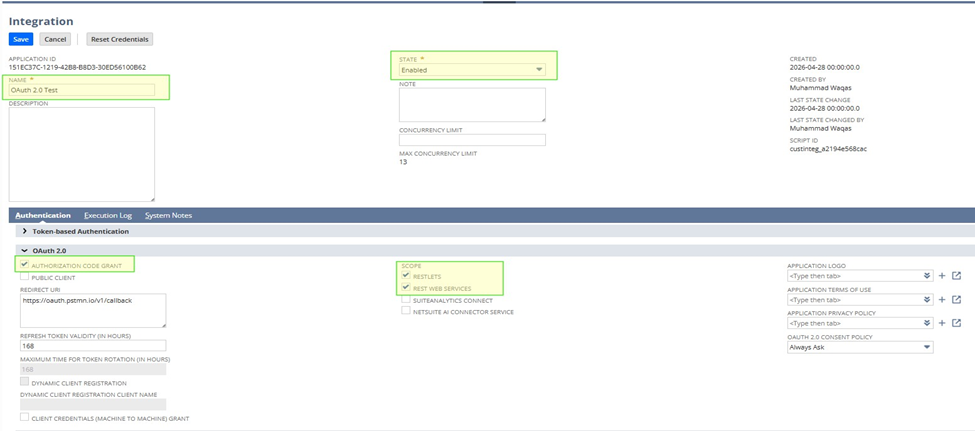

4.     Create Integration Record

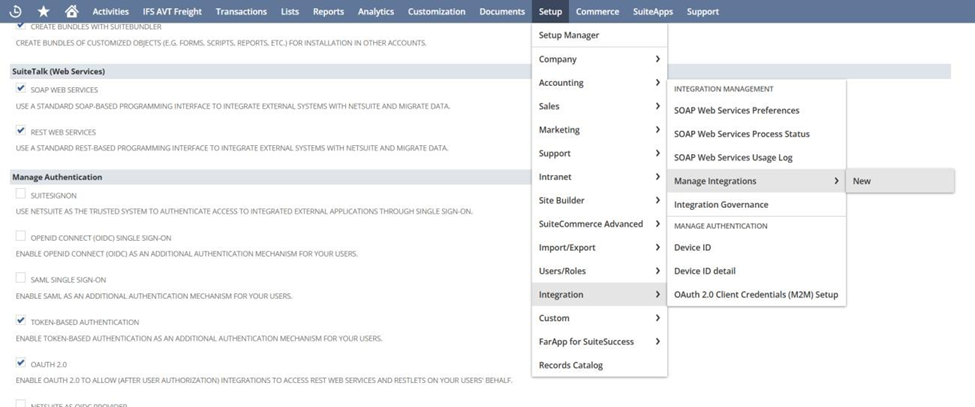

Navigate to: Setup → Integration → Manage Integrations → New

Fill the following details:

• Name: OAuth 2.0 Test
  • State: Enabled

·        OAuth 2.0 Authorization Code Grant: Enabled

• REST Web Services: Enabled
  • RESTlets: Enabled
  • Redirect URL: https://oauth.pstmn.io/v1/callback

Click Save

Important

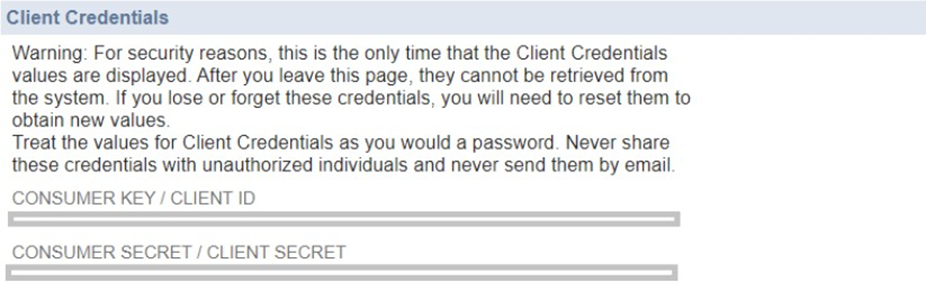

After saving, you will receive:

• Client ID
  • Client Secret

Save these securely (they are shown only once)

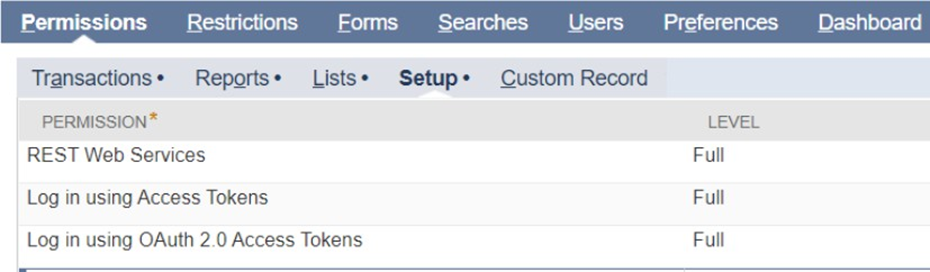

5.     Role & Permissions Setup

Navigate to: Setup → Users/Roles → Manage Roles

Create or update a role with:

• REST Web Services → Full
  • Log in using Access Tokens → Full
  • Log in using OAuth 2.0 Access Tokens → Full Assign this role to your user.

6.     Postman Configuration

Open Postman and create a new request.

• Go to Authorization Tab

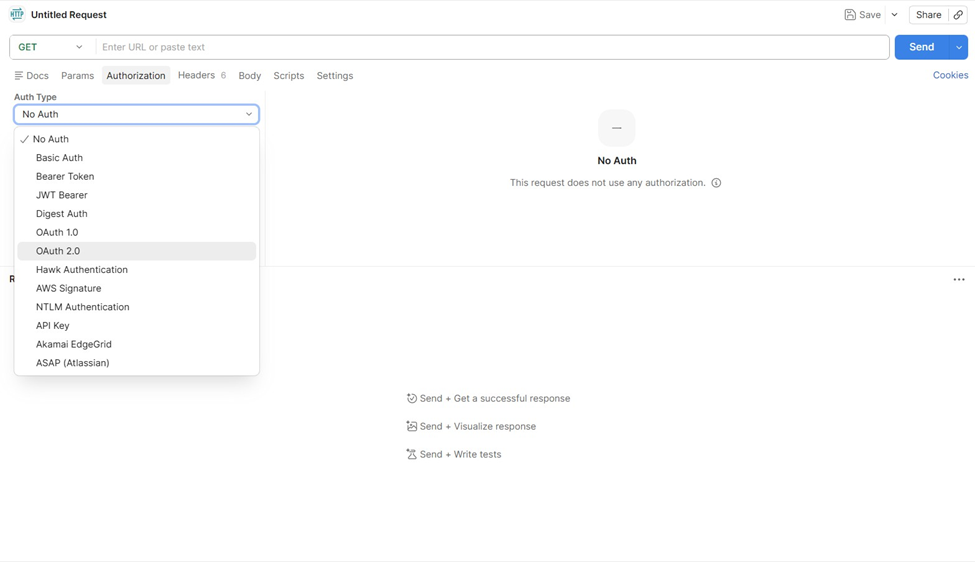

  • Auth Type: OAuth 2.0

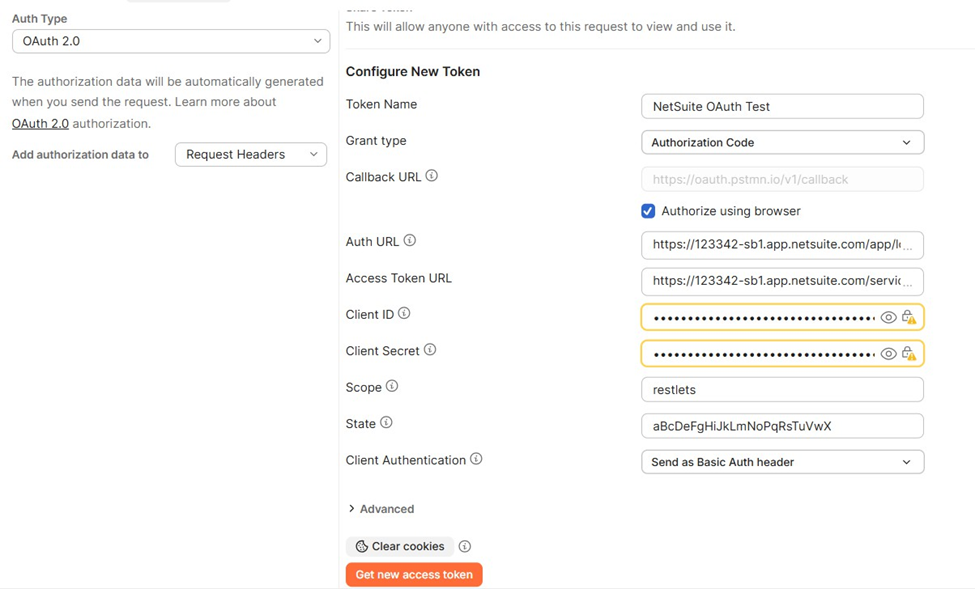

OAuth 2.0 Configuration (we can fill this info by 2 ways) Fill the following:

• Token Name: NetSuite OAuth Test
  • Grant Type: Authorization Code
  • Callback URL: https://oauth.pstmn.io/v1/callback
  • Auth URL: https://ACCOUNT_ID.app.netsuite.com/app/login/oauth2/authorize.nl

·        Access Token URL:

• Client ID: (From NetSuite)
  • Client Secret: (From NetSuite)
  • Scope: rest_webservices or restlets
  • Client Authentication: Send as Basic Auth header

Way 1: (simple)

Way 2: (recommended)

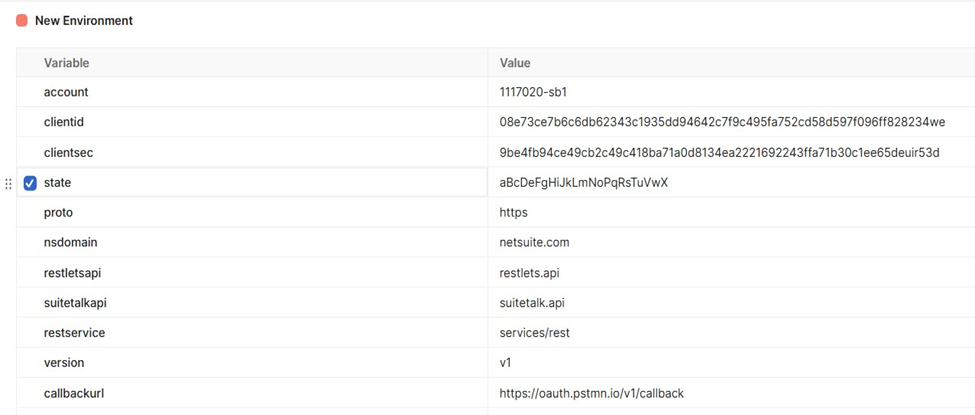

Best practice is making new Environment and save configure new token details into variables

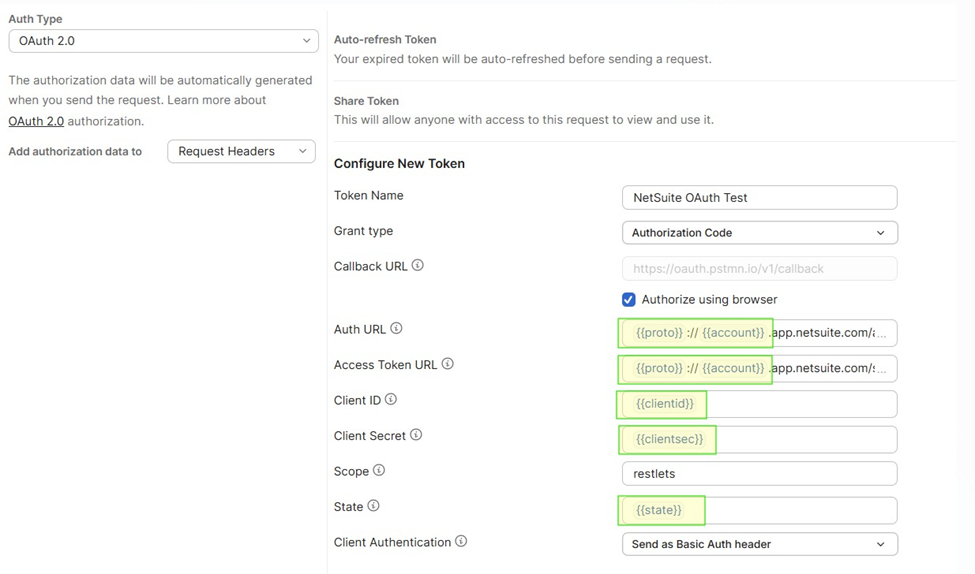

Now use these variables into Configure New Token.

• Generate Access Token (Follow these steps)
• Click Get New Access Token
• Browser window will open

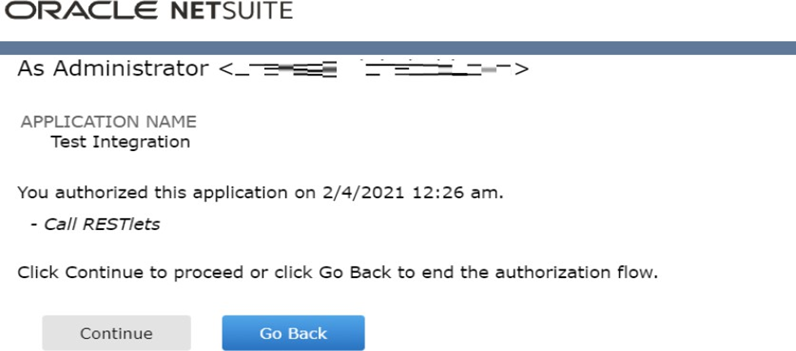

• Login to NetSuite
• Select your assigned role
• Click Allow / Continue

• Token will be generated

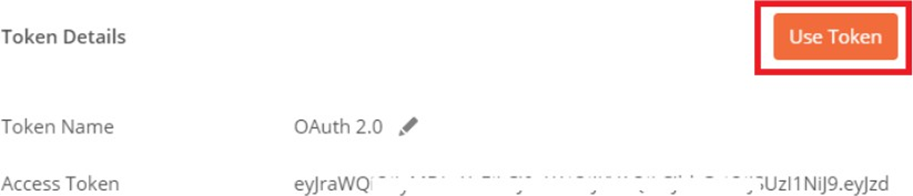

• Click Use Token

• Tokens will be automatically added under the current token.

8.     Test API (now make a testing restlets)

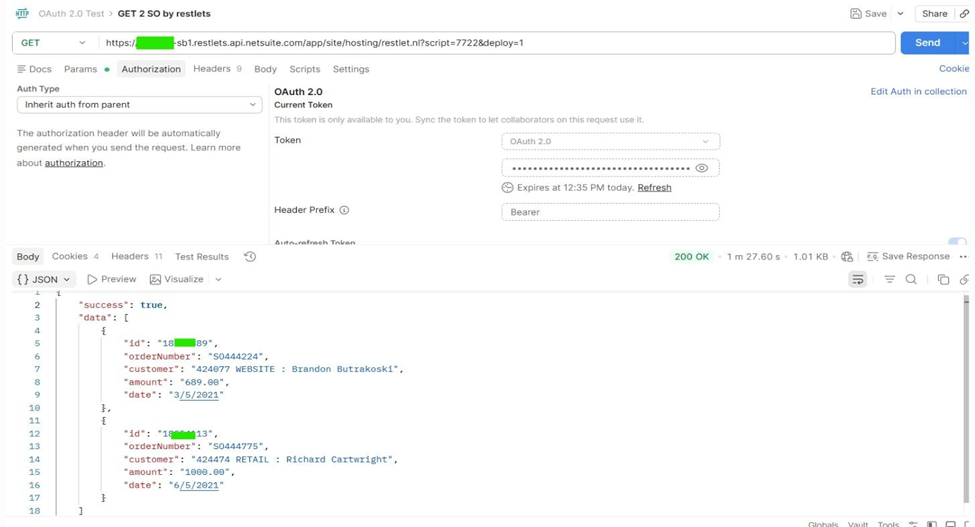

Example request: Get 2 Sales Order by Postman

Note-1: 1^ST Deploy restlets then use its External URL into Postman (result show as you can see on screen shoot)

Note-2:

• Access Token validity: ~60 minutes
  • Refresh Token validity: ~7 days Regenerate token when expired.

Conclusion

You have successfully:

• Configured NetSuite OAuth 2.0
  • Created Integration RecordGenerated Access Token via Postman
  • Tested API connectivity

This setup enables secure communication between external applications and NetSuite.
